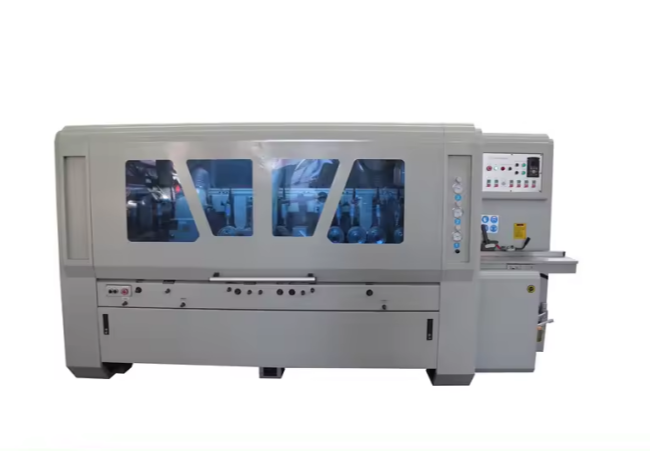

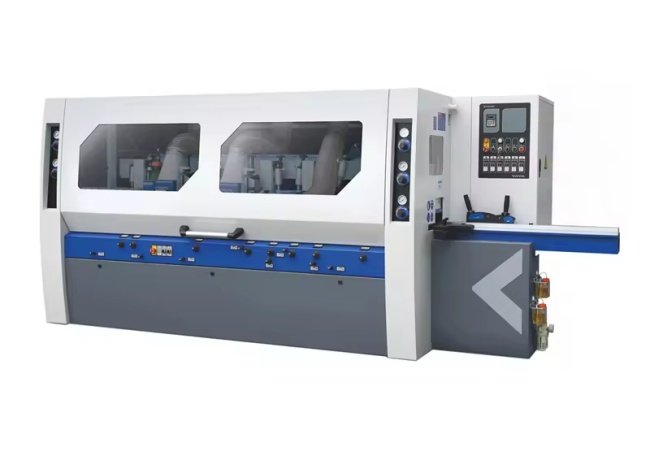

4 Sided Planer
- High precision processing: It can achieve synchronous precision planing on all four sides of the wood, and the dimensional accuracy of the wood after processing is extremely high
- Efficient production: one feed can complete the processing of the four faces of wood, greatly shortening the processing time and improving the production efficiency. Compared with the traditional single-sided or double-sided planing process, the four-sided planing has obvious advantages in mass production and can meet the production needs of large-scale wood processing enterprises.

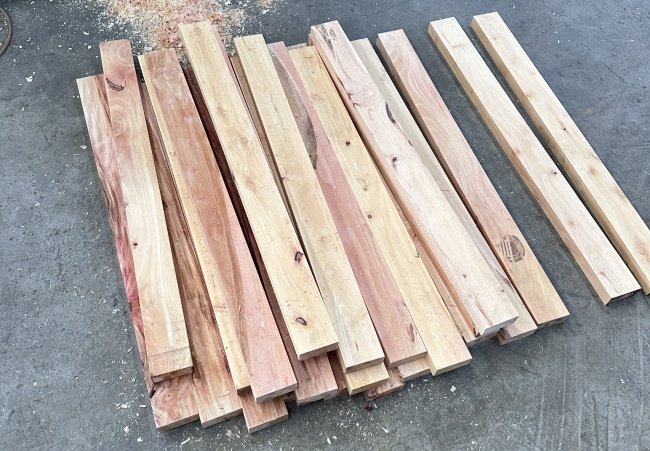

- Good surface quality: The surface of the planed wood is smooth and flat, and you can hardly see obvious planing marks
- High flexibility: by replacing different types of planing tools and adjusting equipment parameters,
- High degree of automation: Modern four-sided planer is equipped with advanced automatic control system, the operator only needs to input the required processing parameters on the control panel, the equipment can automatically complete the planing process.

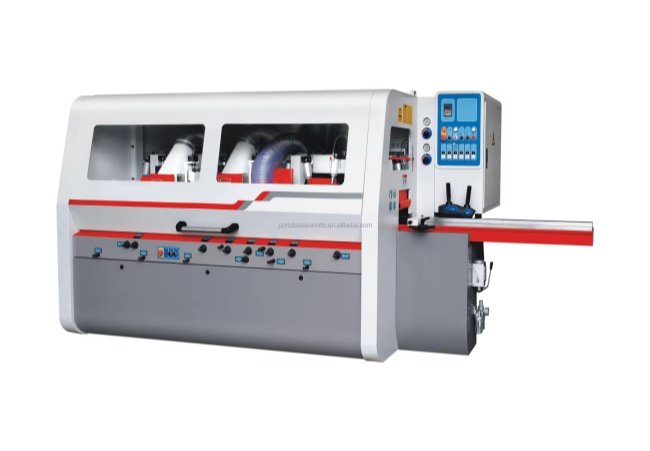

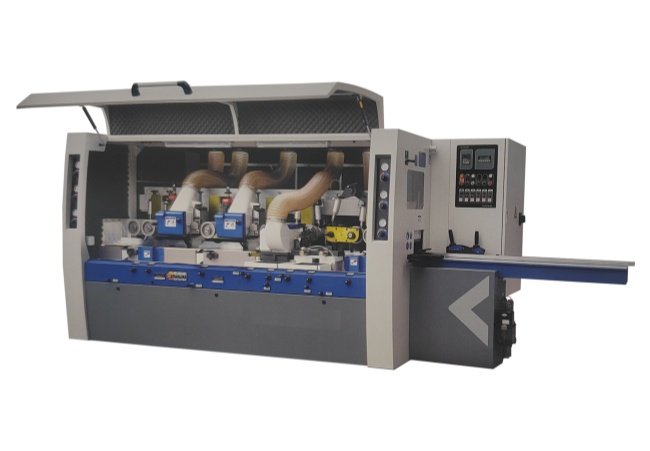

What is 4 Sided Planer

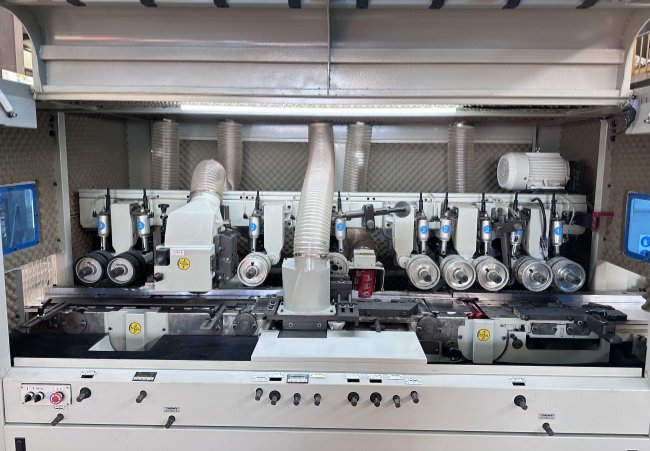

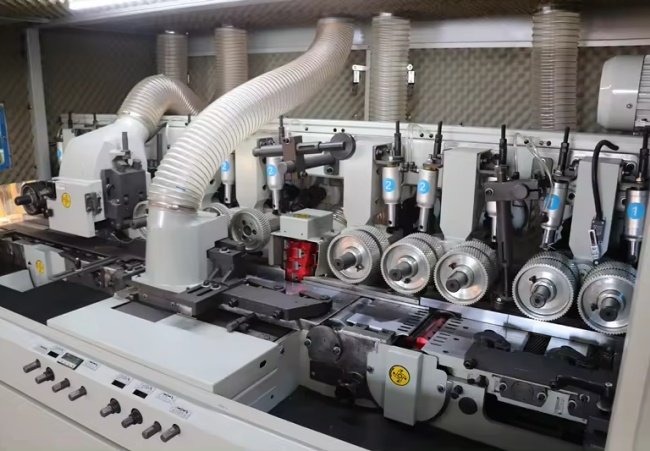

A four-sided planer cuts wood with planer blades on multiple axes. The wood is fed into the machine by the feeding system, a number of tool shafts rotate at a high speed in a specific order and direction, and the planing blade mounted on the tool shaft simultaneously planes the upper and lower surfaces and two sides of the wood, removing the uneven part of the wood surface, so that the four faces of the wood achieve the required flatness, finish and dimensional accuracy.
| Spec &Models | SH-B418 | SH-B521 | SH-B623 |
| Working Width | 25-180mm | 25-210mm | 25-230mm |
| Working Thickness | 8-130mm | 8-130mm | 8-160mm |
| Working Table Length | 580/300mm | 580/300mm | 580/300mm |
| Blade Diameter | φ40mm | φ40mm | φ40mm |
| Feeding Speed | 5-40m | 5-40m/min | 5-40m/min |
| Main Spindle Speed | 7000r/min | 7000r/min | 7000r/min |
| Trimming Blade Diameter | φ145/φ150mm | φ145/φ150mm | φ145/φ150mm |
| 1st Lower Blade Diameter | φ125mm | φ125mm | φ125mm |
| Left/Right Blade Diameter | φ110-φ160mm | φ125-φ160mm | φ110- φ160mm |
| 1st Upper Blade Diameter | φ125-φ160mm | φ125-φ160mm | φ125-φ160mm |
| 2nd Upper Blade Diameter | 一 | 一 | φ125-φ160mm |
| 2nd Lower Blade Diameter | 一 | φ125-φ180mm | φ125-φ180mm |
| Total Motor Power | 24.25KW | 34.25kw | 52.75kw |
| 1st Lower Blade Power | 4KW | 5.5KW | 5.5KW |
| Left Blade Power | 5.5KW | 5.5KW | 7.5KW |
| Right Blade Power | 5.5KW | 5.5KW | 7.5KW |
| 1st Upper Blade Power | 5.5KW | 7.5KW | 11KW |
| 2nd Upper Blade Power | 一 | 一 | 7.5KW |
| 2nd Lower Blade Mower | 一 | 5.5KW | 7.5KW |
| Feeding Motor Power | 3KW | 4KW | 5.5KW |
| Lifting Motor Power | 0.75KW | 0.75KW | 0.75KW |
| Pneumatic Source Pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa |
| Dust Outlet Diameter | 4*φ150mm | 5*φ150mm | 6*φ150mm |
| Overall Size | 3150*1550*1800mm | 3680*1660*1860mm | 3680*1660*1860mm |
| Weight | 2700kg | 3500kg | 4000kg |
High processing accuracy
The thickness tolerance of the wood can be controlled within a small range.
High production efficiency
Because the upper and lower sides of the wood can be planed at the same time, compared with the single-side planer, its production efficiency is greatly improved.
Stable processing quality
Through precise tool adjustment and stable feeding system, the double-sided planer can ensure that the upper and lower surfaces of the wood can be uniform and consistent during the entire processing process.
Our machine can reach 10-630mm
25-230mm
5-40m/min
