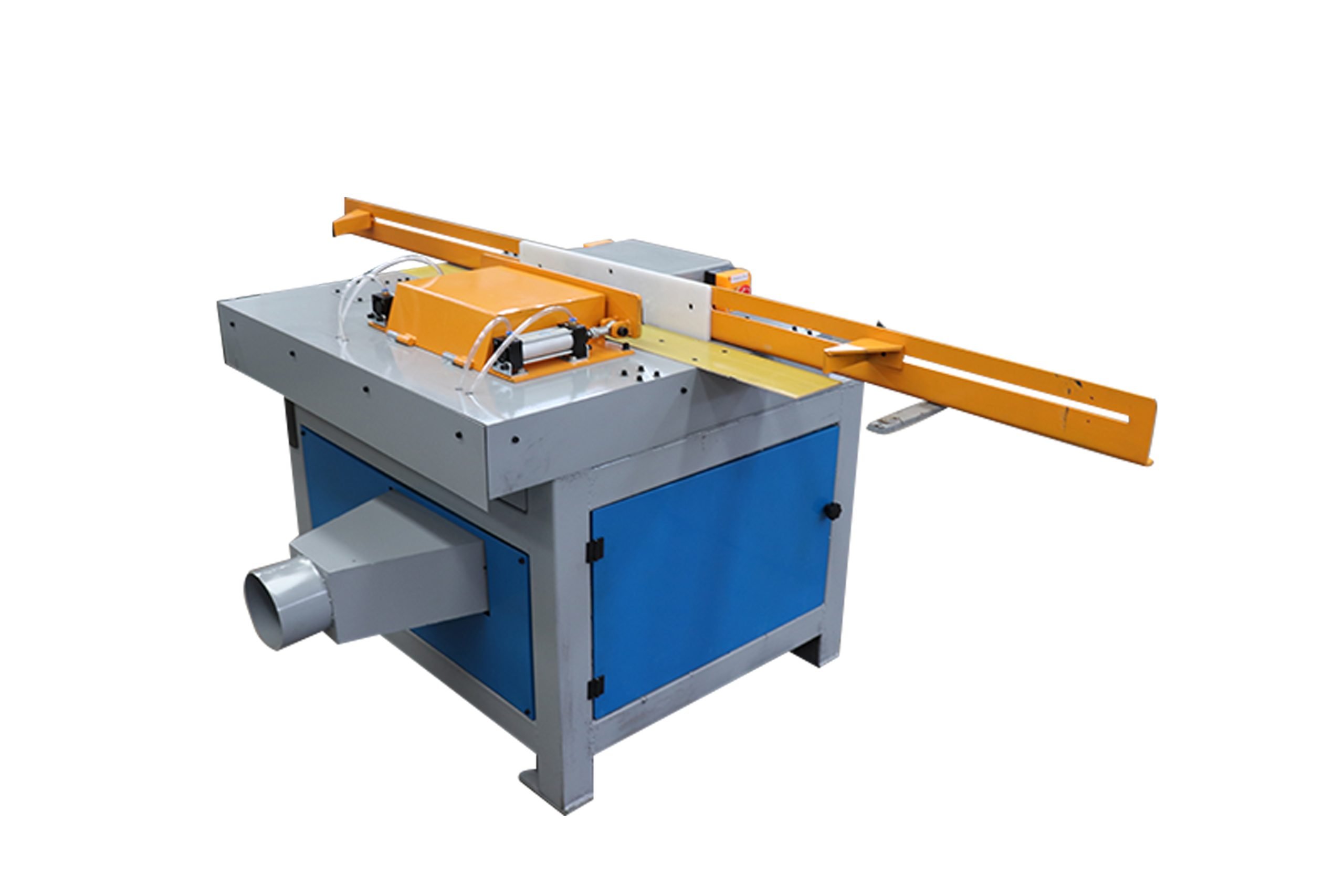

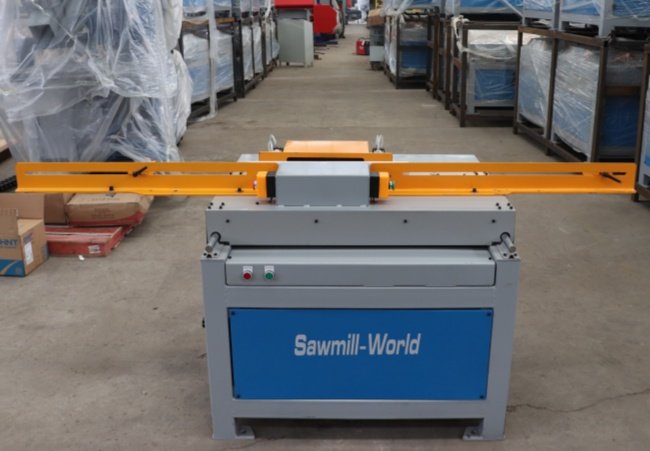

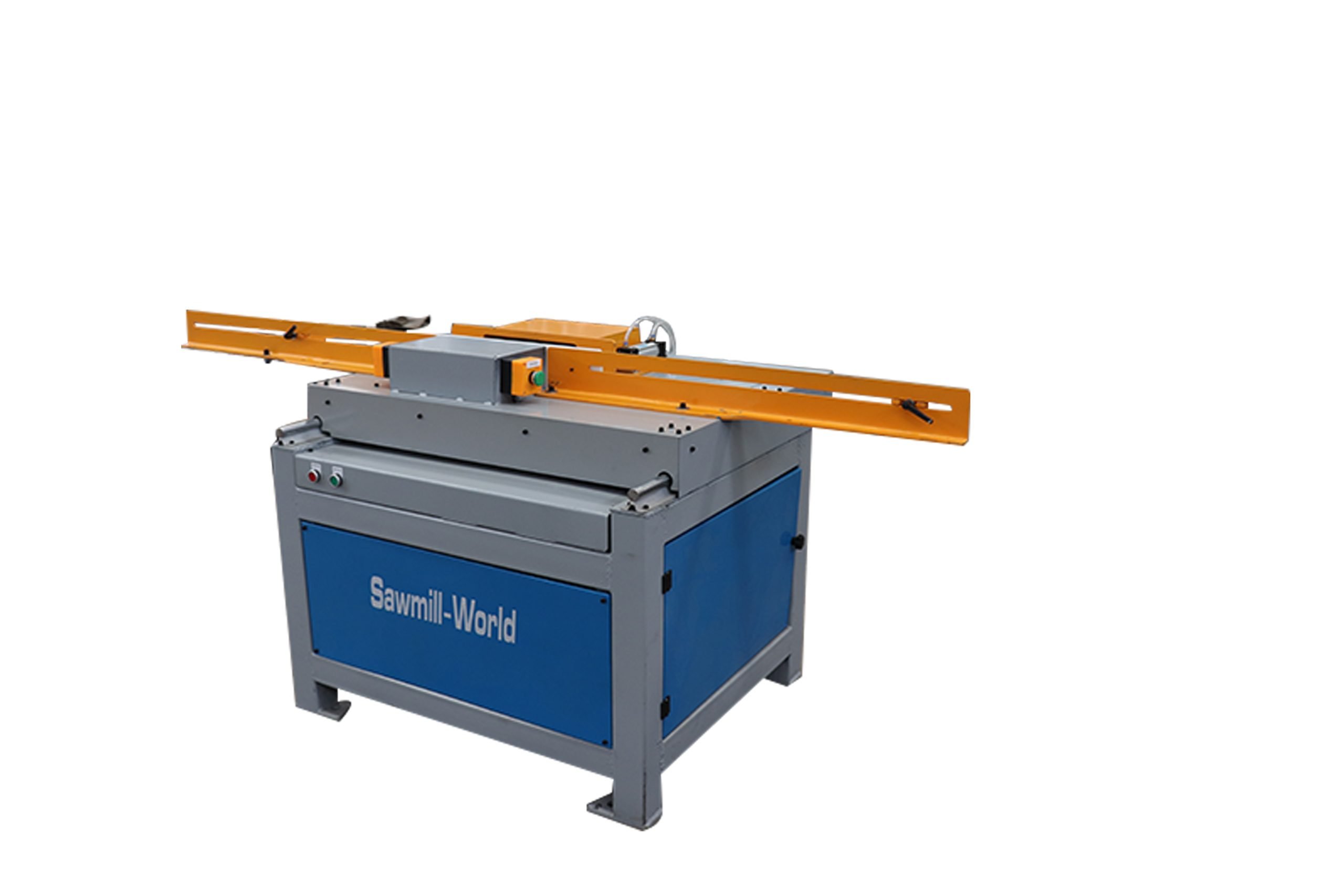

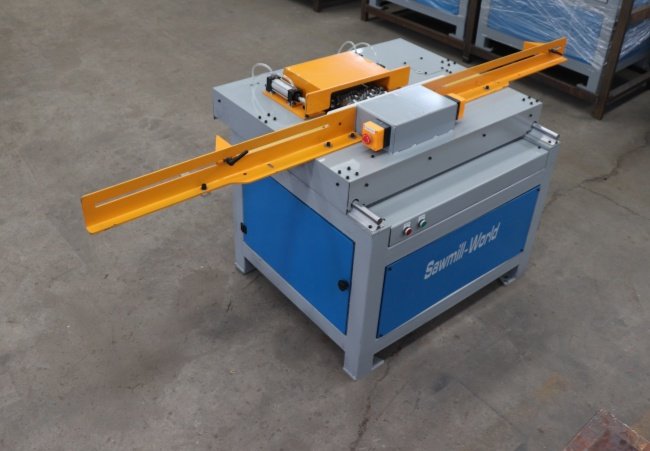

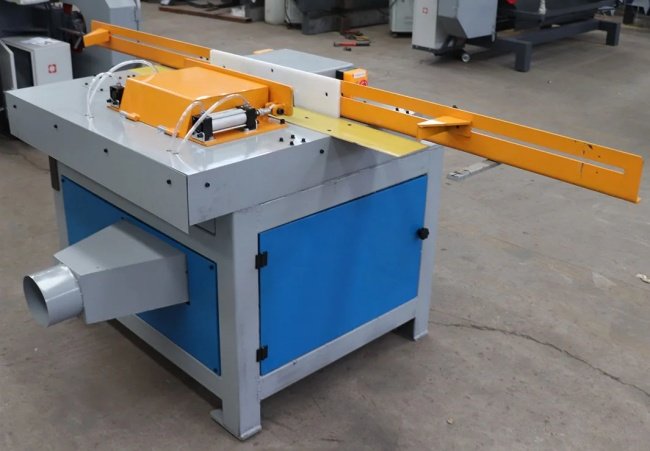

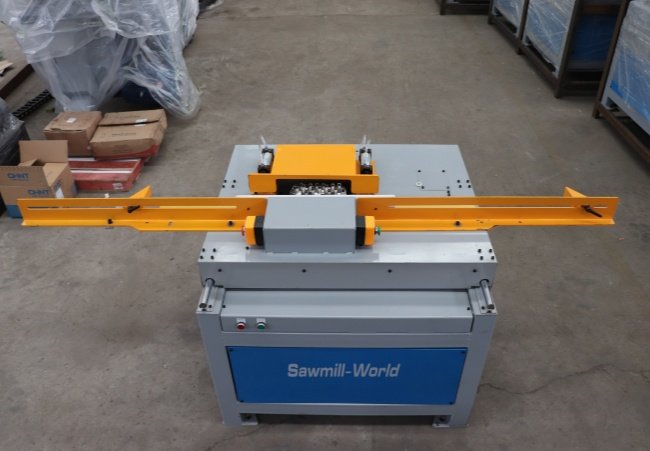

Wooden Pallets Single Slot Notcher Machine
- Slot length, width and height can be adjusted according to customer requirements.
- National standard low energy consumption motor, energy saving and easy operation.
- The whole frame is welded with channel steel, and the equipment has high stability.
- Suitable for long plates, the maximum length of processed plates can reach 1800mm.
- The thickness range of the plates can be processed is 40-60mm, and the maximum width of the plates can be processed is 160mm.
- Multiple plates can be processed and slotted at one time, with high work efficiency.

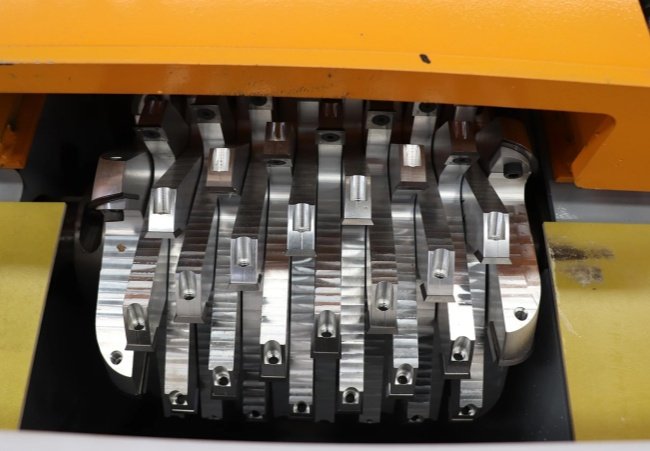

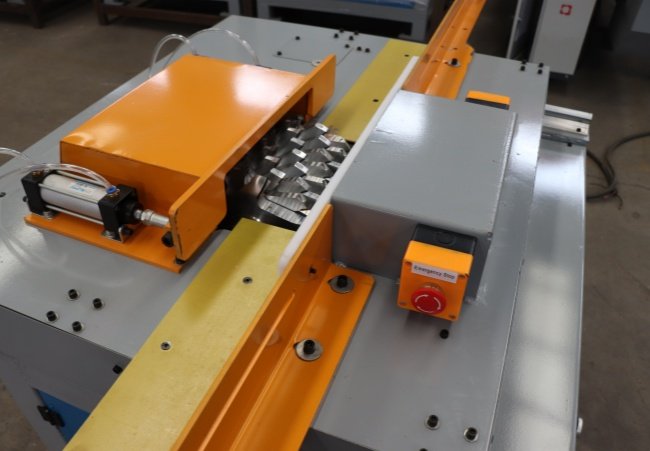

- The machine installs 2 sets of arc blades (a set of arc blades with 6 small arc blades), 14 sets of flat blades (a set of flat blades with 6 small flat blades heads), a total of 12 small arc blades, 84 small flat blades.
What is Wooden Pallets Single Slot Notcher Machine

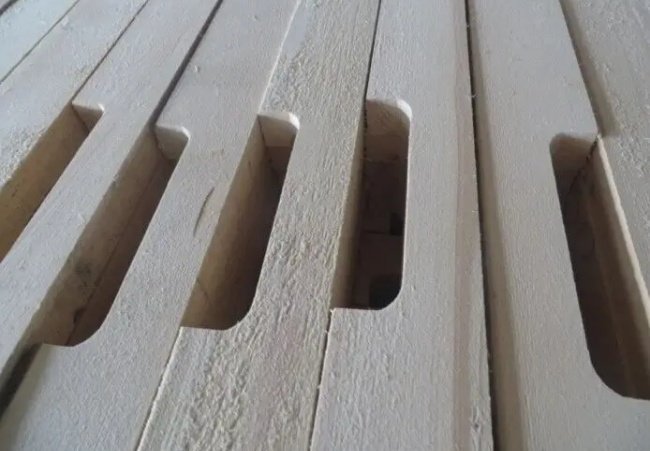

Wooden pallets single slot notcher machine mainly drives the tool to rotate at high speed through the motor, and uses the rotating tool to cut the material, so as to open the required groove on the surface of the material. For example, in the field of woodworking, the milling cutter is turned at high speed to cut the wood into grooves of various shapes and depths for installing mortise and tenon structures, embedded lines, etc. In plastic processing, the same rotary cutting tool is used to open slots for splicing and wiring on the plastic plate.
| Model | WPN-1 |
| Electric Motor | 15kw |
| Voltage | 380v,50hz,3phase( or customized) |
| Material of Blade | Alloy |
| Max Process Wood Length | 1800mm |
| Max Process Wood Thickness | 40-60mm |
| Max Process Wood Width | 160mm |
| process notch width | 200-230mm |
| process notch depth | <45mm |
| Capacity | 600-800pcs/hour |
| Machine Size | 1200*1100*1200mm |
| Package Weight | 400kg |
High machining accuracy
The single-head slotting machine can precisely control the depth, width and position of the slotting, and the machining accuracy can reach millimeters or even higher levels. For example, in the manufacture of electronic equipment, it is necessary to open highly accurate slots on the circuit board to install electronic components, and single-head slotting machines can well meet this demand.
Good slotting quality
Due to the high-speed rotation of the tool and the stable cutting process, the grooving wall is smooth and burrless, and the shape of the grooving is regular, which can improve the processing quality and aesthetics of the material. In furniture manufacturing, good slotting quality can make the assembly of furniture more compact and firm, and the appearance is more exquisite.
Simple operation
The operation of the single-head slotting machine is relatively simple, and the operator can be proficient after simple training. Its control panel is usually simple in design, and various functional buttons are clear at a glance, which is convenient for operators to set parameters and operate according to processing needs.
